Gross Trailer Weight

Approx 45 kg. Plus 2 – 5 kg drawbar (dependant on design)

Maximum Recommended Payload

40 kg

Maximum Lean Angle

45 Degrees.

Chassis

CNC bent single Tubular steel tube. Fully powder coated silver or black. Separate swing arm. ABS Inner mudguard to rear of trailer, ABS stone guard at front of trailer to protect body.

Suspension

Single Shock Absorber.

Trailer Volume

185 Litres Total.

Body Construction

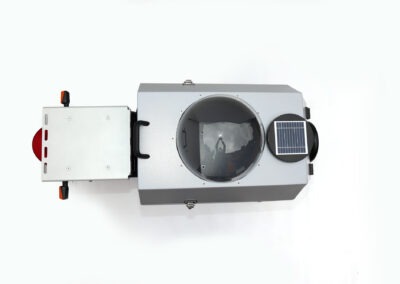

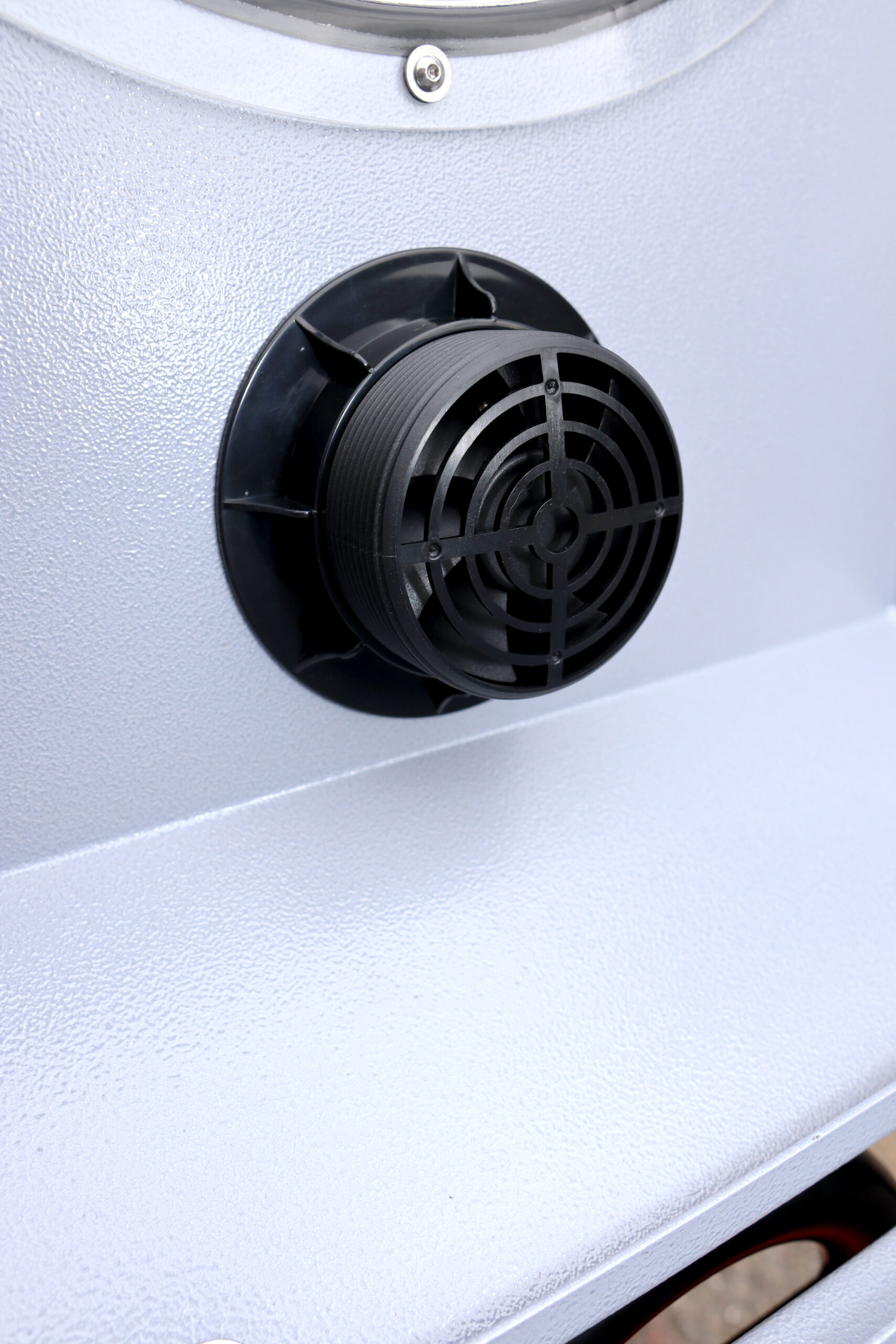

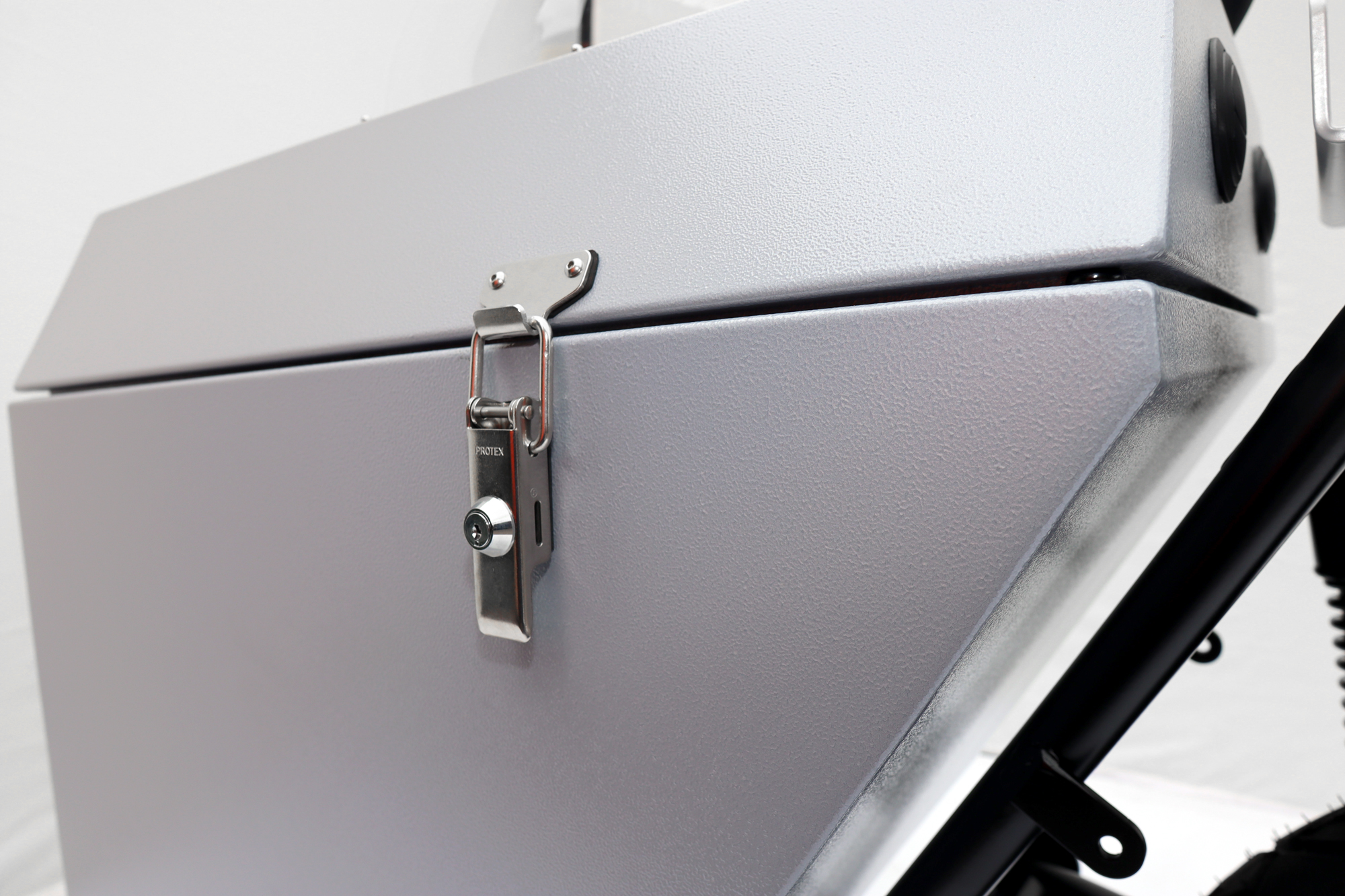

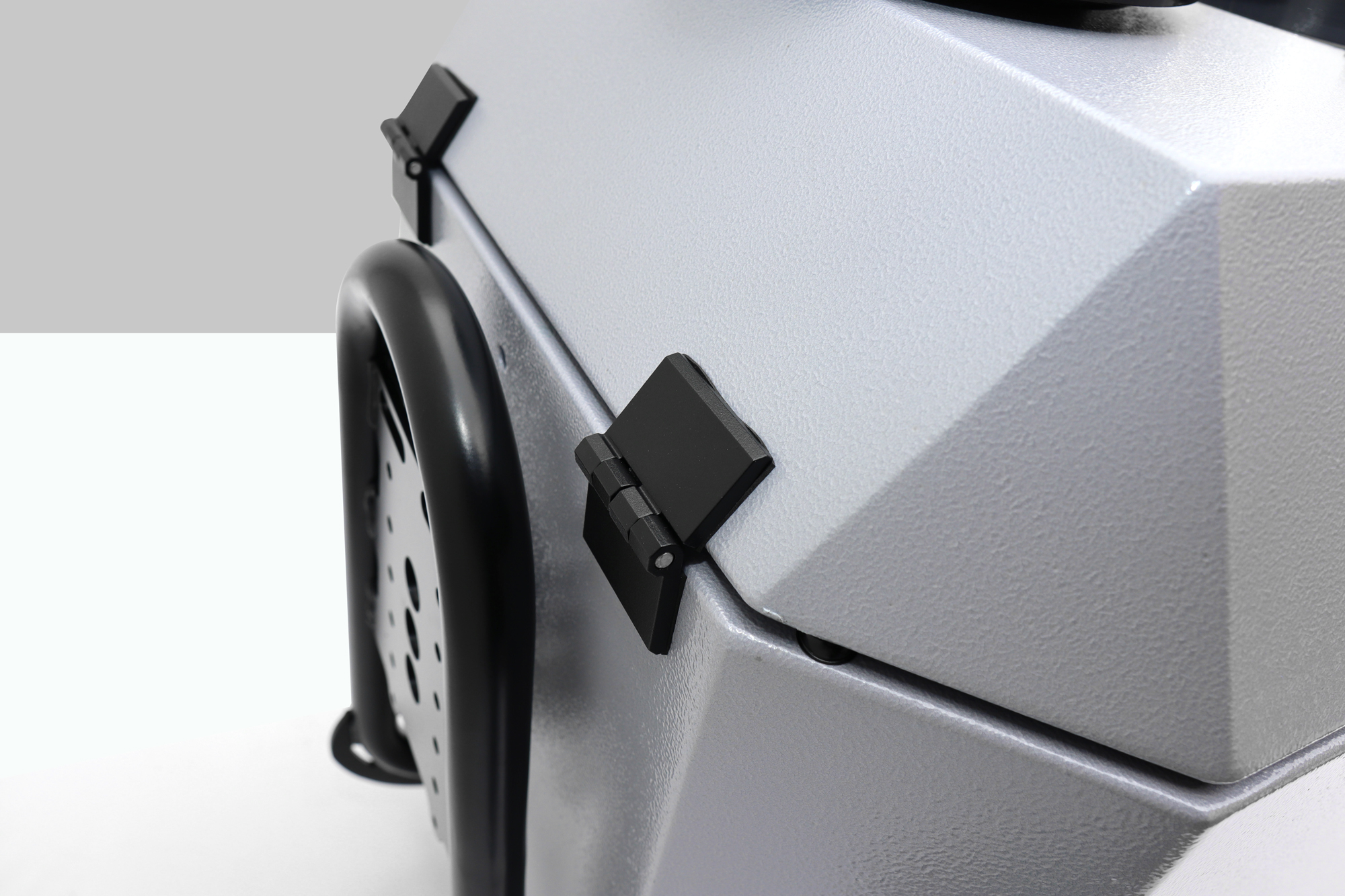

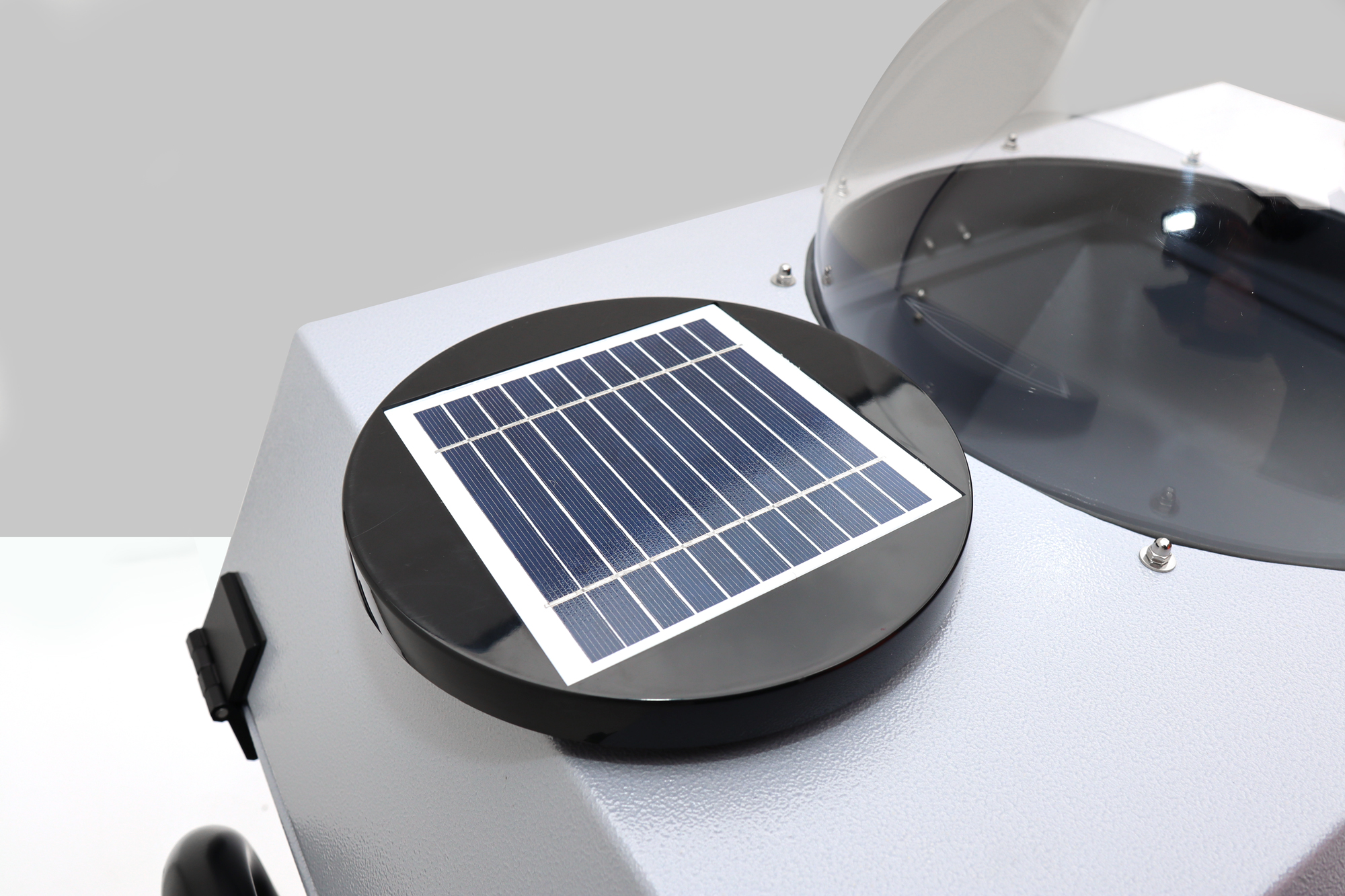

Aluminium body fully welded seams. Hinged lid at front with lockable catch each side. Solar fan. External vents. Perspex dome. Height adjustable floor.

Finish

Powder coated.

Other Finish Options

2x 5lt Jerry cans for extra fuel or pannier mounts. or 2 x Extra luggage Side Racks in pace of Jerry cans

Interior

Bare metal. Felt or foam lined.

Lights

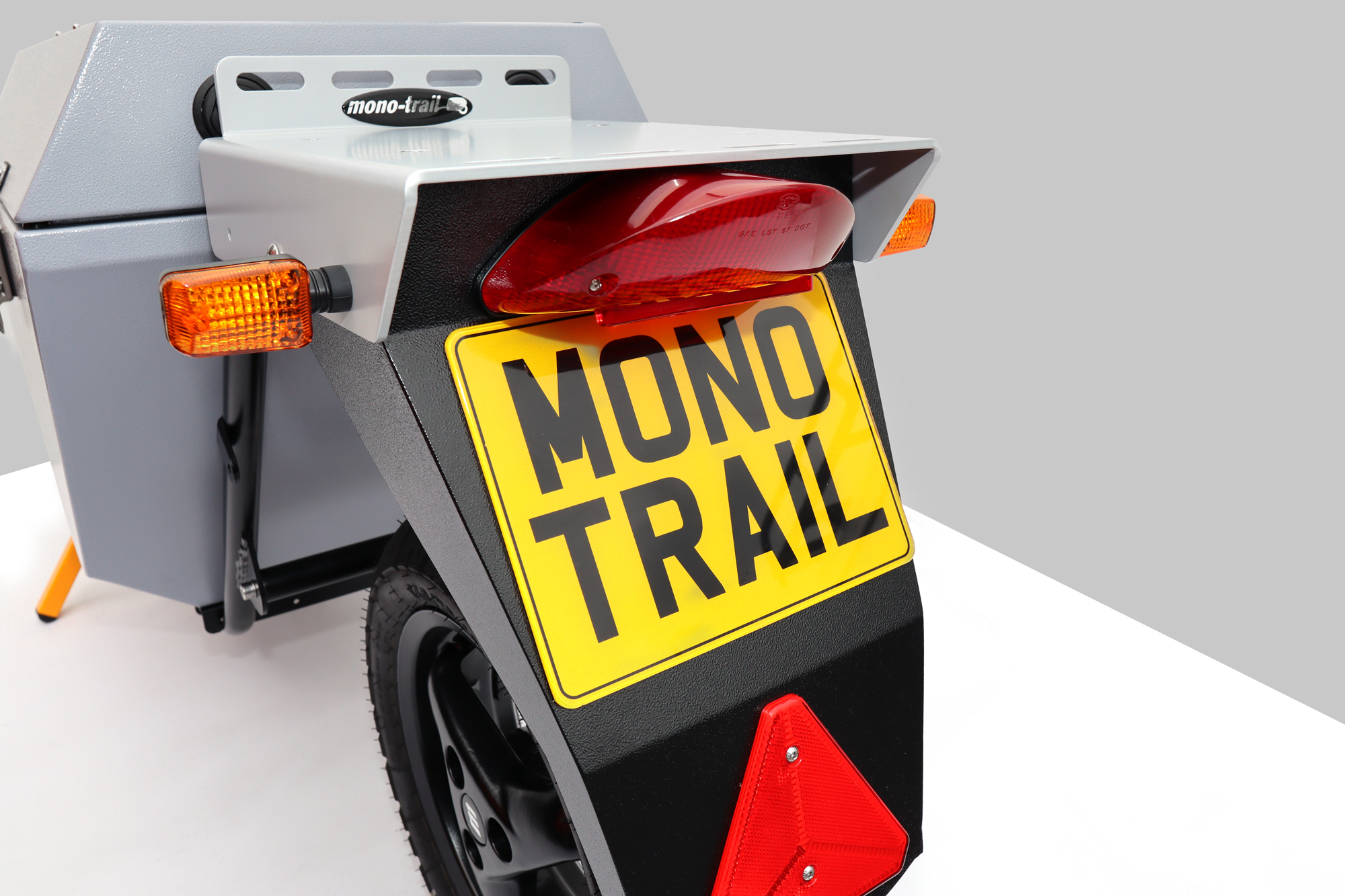

Rear light similar to BMW R1200GS lights. Side indicators on rubber stalks.

Maximum Trailer Body
Length (Excluding Drawbar)

1250mm

Maximum Trailer Body Width

525 mm

Maximum Height above Road

750mm

Wheel

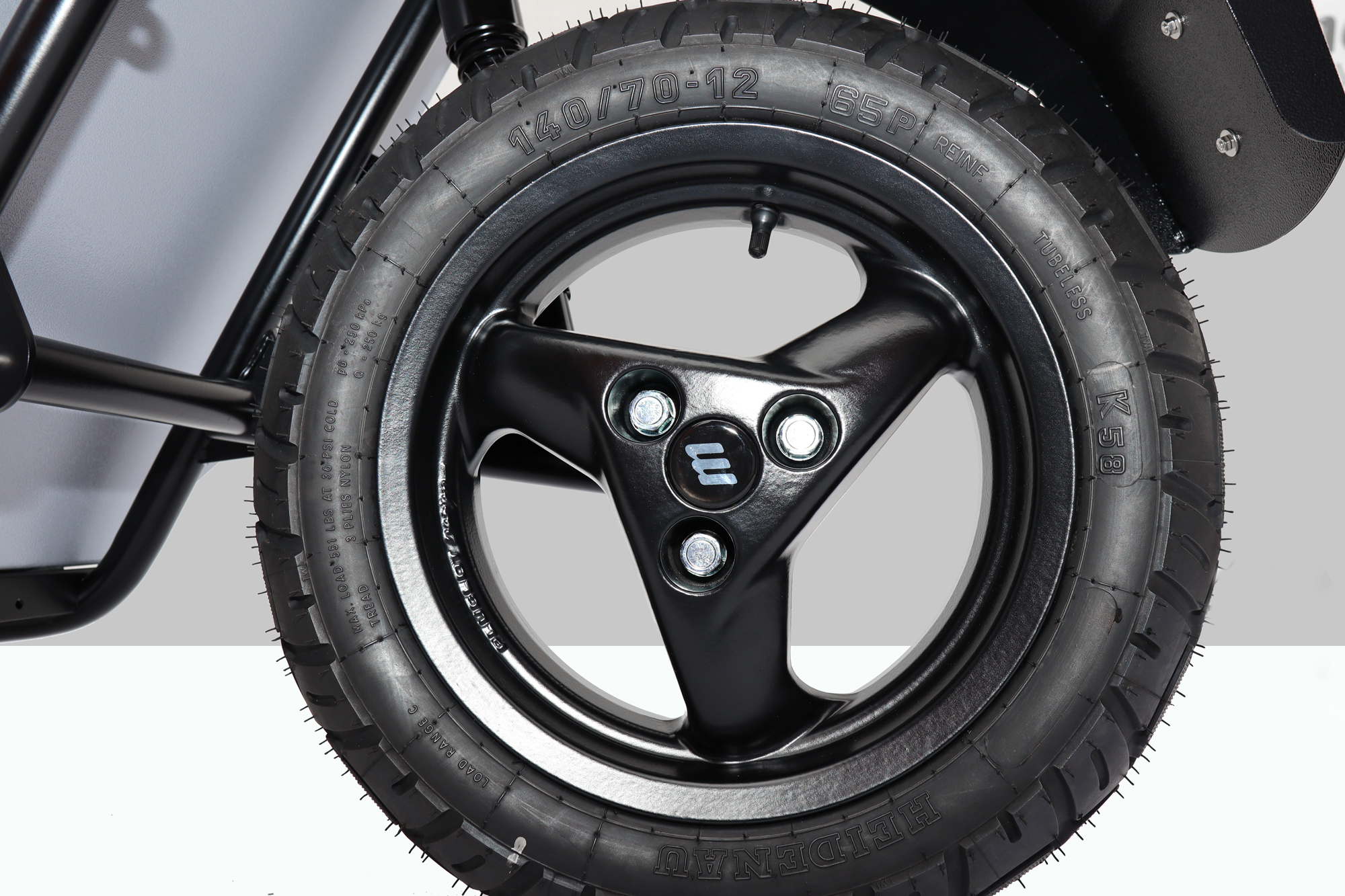

12″ Cast Alloy Wheel – Powder Coated carried on CNC machined custom designed anodised alloy hub.

Tyre Size

Ground Clearance

165mm
